Steel Cuplock Scaffold Post Tube
Turnbuckle scaffolding is a common type of scaffolding. Its composition is generally composed of bowl buckle nodes, upper bowl buckles, lower bowl buckles, limit pins, horizontal slashes, special silk rods, vertical poles and other accessories.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Introduction
Turnbuckle scaffolding is a common type of scaffolding. Its composition is generally composed of bowl buckle nodes, upper bowl buckles, lower bowl buckles, limit pins, horizontal slashes, special silk rods, vertical poles and other accessories. It can be said to be an open work system, and the bowl buckle scaffold can be said to be a working system rather than a single component.

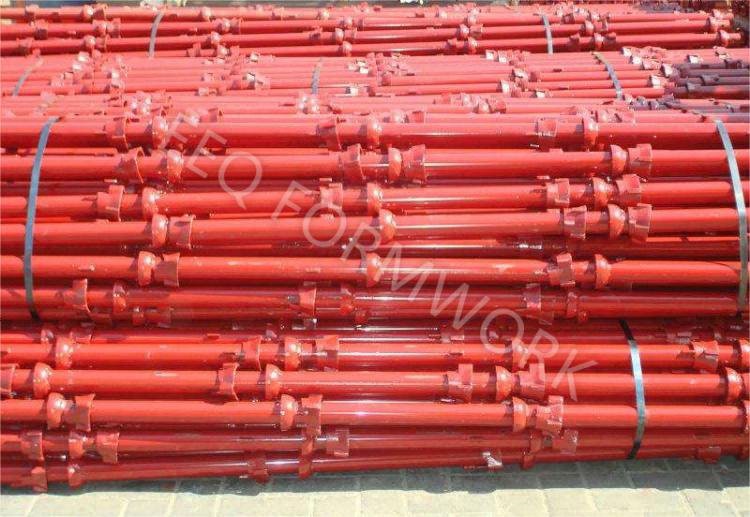

Now we focus on the Steel Cuplock Scaffold Post Tube that are part of the bowl buckle scaffolding.
The role in the bowl buckle scaffolding: it acts as a vertical support rod in the scaffolding There should be a sleeve for extension and a pin hole for linking on the pole.
Requirements for bowl buckle scaffolding poles: the wall thickness of the pole connecting jacket shall not be less than 3.5-0.025mm, the inner diameter shall not be greater than 50mm, the length of the outer casing shall not be less than 160mm, and the overhang length shall not be less than 110mm.
The upper bowl buckle on the pole should be able to move up and down and flexibly rotate without sticking. The upper end of the pole has measures to prevent the upper bowl buckle from falling off.
A 12mm connecting pin should be able to be inserted into the connecting hole connecting the production pole and the vertical pole.
The dead weight of the pole system that constitutes the bowl buckle scaffolding structure mainly includes: vertical poles, vertical and horizontal poles, slashes, horizontal slashes, eight-character slashes, ten-anchors and other deadweights.
Support analysis of double-row bowl buckle scaffolding production poles. When there is no inclined bar between the two production poles, the calculated length of the vertical pole is equal to the vertical distance between the wall elements.
Finish: Galvanized, Painted.
Material: Q235.
Specification
Item | Length (Meters) | Thick 3.0mm (3.2KG/Per Meter Steel Pipe) | Thick 2.75mm (2.9KG/Per Meter Steel Pipe) | Thick 3.5mm (3.8KG/Per Meter Steel Pipe) | Thick 3.25mm (3.5KG/Per Meter Steel Pipe) | ||||||||
Weight/ Pcs kg | Pcs/Ton | Meter/Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | ||
Cuplock Standard | 3.0 m | 14.1 | 74 | 222 | 13.15 | 76 | 228 | 16.15 | 62 | 192 | 14.95 | 67 | 201 |
Finish: Galvanized, Painted Tube dia.: 48.3mm | 2.4 m | 11.37 | 88 | 211 | 10.65 | 94 | 225 | 13.05 | 76 | 190 | 12.09 | 83 | 199 |
2.1 m | 9.65 | 104 | 218 | 9.02 | 111 | 233 | 11.08 | 90 | 198 | 10.3 | 97 | 203 | |
1.8 m | 8.69 | 115 | 207 | 8.15 | 123 | 221 | 9.95 | 100 | 190 | 9.23 | 108 | 194 | |
1.5 m | 6.97 | 143 | 214 | 6.52 | 153 | 229 | 8.78 | 114 | 183 | 7.42 | 135 | 202 | |
1.2 m | 6.01 | 166 | 199 | 5.65 | 177 | 212 | 6.85 | 146 | 190 | 6.37 | 157 | 188 | |
0.9 m | 4.29 | 233 | 209 | 4.02 | 249 | 224 | 4.92 | 203 | 203 | 4.56 | 219 | 197 | |
0.6 m | 3.33 | 300 | 213 | 3.15 | 317 | 225 | 3.69 | 271 | 192 | 3.51 | 284 | 201 | |
Cuplock Ledger | |||||||||||||
Finish: Galvanized, Painted Tube dia.: 48.3mm | 1.5 m | 4.98 | 201 | 291 | 4.55 | 220 | 319 | 5.98 | 167 | 242 | 5.4 | 185 | 268 |
1.2 m | 4.02 | 249 | 286 | 3.68 | 272 | 313 | 4.81 | 208 | 239 | 4.36 | 229 | 263 | |
0.9 m | 3.06 | 327 | 278 | 2.81 | 356 | 303 | 3.64 | 274 | 232 | 3.31 | 302 | 257 | |
0.6 m | 2.1 | 476 | 262 | 1.94 | 515 | 283 | 2.76 | 362 | 199 | 2.26 | 443 | 244 | |
Applicant

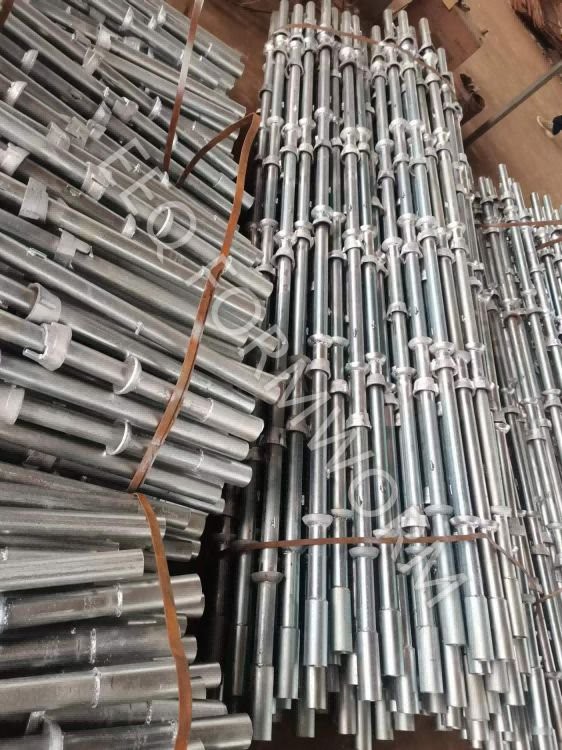

Packing
Products Certification
EEQ Cuplock scaffolding has large bearing capacity and high strength.
Easy assembly and disassembly, reliable quality.
High precision and strong wear resistance.
Low cost and high utilization rate.
ADVANTAGE
1、According to EN 12810 Scaffolding Standard.
2、According to ISO9001 In Raw Material Test, Welding Quality and Safety Load Capacity.
3、Can produce different size as your require.
4、We have a good sales team and professional in export. Can offer best service.
5、We have a professional factory, which has 12 years experience.
6、Can offer Form E, Form F, Co, Etd Certification.
EEQ Formwork factory is loacated in hebei province. We have 200 workers with 10 production lines for formwork and accessories. Workshop area is around 85，000 m². We got varias quality certification, especialy for scaffolding, formwork pannels, formwork accessories, climbing system. For scaffolding, we have two types, one is cuplock scaffolding, the other one is turnbuckle scaffolding. All we have certifications can be offered. We do 100% welding, what we offer is high quality.
