Scaffold Steel Cross Bar
Scaffold System Connection Pipe. The cross bar in the buckle type scaffold is mainly composed of three parts: steel pipe, pin plate and cross bar head. The function of the cross bar is mainly to connect two adjacent vertical bars, stabilize the frame body, and at the same time play the role of extending the frame body.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Introduction
Scaffold System Connection Pipe. The cross bar in the buckle type scaffold is mainly composed of three parts: steel pipe, pin plate and cross bar head. The function of the cross bar is mainly to connect two adjacent vertical bars, stabilize the frame body, and at the same time play the role of extending the frame body.
We know that there are 48 and 60 series of buckles, and there are also 48 and 60 series of crossbars
Finish: Galvanized, Painted.
Material: Q235.
Specification
Item | Length (Meters) | Thick 3.0mm (3.2KG/Per Meter Steel Pipe) | Thick 2.75mm (2.9KG/Per Meter Steel Pipe) | Thick 3.5mm (3.8KG/Per Meter Steel Pipe) | Thick 3.25mm (3.5KG/Per Meter Steel Pipe) | ||||||||
Weight/ Pcs kg | Pcs/Ton | Meter/Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | Weight/ Pcs kg | Pcs/Ton | Meter/ Ton m | ||
Cuplock Standard | 3.0 m | 14.1 | 74 | 222 | 13.15 | 76 | 228 | 16.15 | 62 | 192 | 14.95 | 67 | 201 |
Finish: Galvanized, Painted
| 2.4 m | 11.37 | 88 | 211 | 10.65 | 94 | 225 | 13.05 | 76 | 190 | 12.09 | 83 | 199 |
2.1 m | 9.65 | 104 | 218 | 9.02 | 111 | 233 | 11.08 | 90 | 198 | 10.3 | 97 | 203 | |
1.8 m | 8.69 | 115 | 207 | 8.15 | 123 | 221 | 9.95 | 100 | 190 | 9.23 | 108 | 194 | |
1.5 m | 6.97 | 143 | 214 | 6.52 | 153 | 229 | 8.78 | 114 | 183 | 7.42 | 135 | 202 | |
1.2 m | 6.01 | 166 | 199 | 5.65 | 177 | 212 | 6.85 | 146 | 190 | 6.37 | 157 | 188 | |
0.9 m | 4.29 | 233 | 209 | 4.02 | 249 | 224 | 4.92 | 203 | 203 | 4.56 | 219 | 197 | |
0.6 m | 3.33 | 300 | 213 | 3.15 | 317 | 225 | 3.69 | 271 | 192 | 3.51 | 284 | 201 | |
Cuplock Ledger | |||||||||||||
Finish: Galvanized, Painted Tube dia.: 48.3mm | 1.5 m | 4.98 | 201 | 291 | 4.55 | 220 | 319 | 5.98 | 167 | 242 | 5.4 | 185 | 268 |
1.2 m | 4.02 | 249 | 286 | 3.68 | 272 | 313 | 4.81 | 208 | 239 | 4.36 | 229 | 263 | |
0.9 m | 3.06 | 327 | 278 | 2.81 | 356 | 303 | 3.64 | 274 | 232 | 3.31 | 302 | 257 | |
0.6 m | 2.1 | 476 | 262 | 1.94 | 515 | 283 | 2.76 | 362 | 199 | 2.26 | 443 | 244 | |

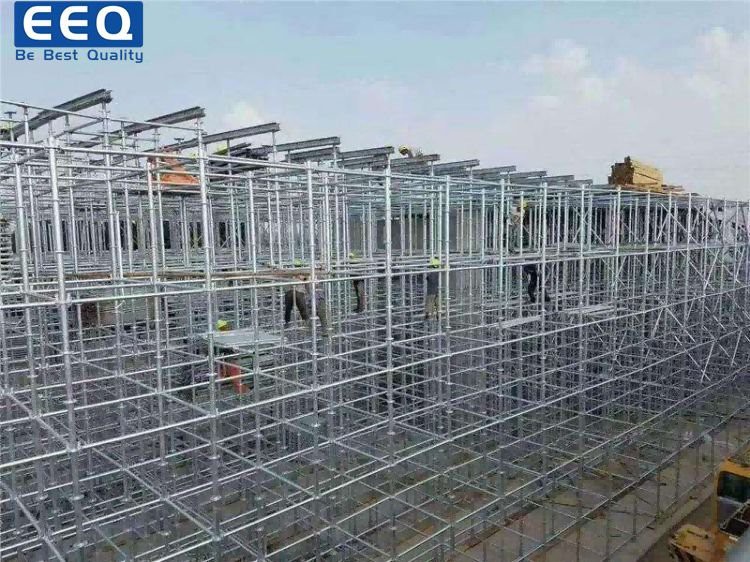

Applicant
Packing
Products Certification
EEQ Formwork factory is loacated in hebei province. We have 200 workers with 10 production lines for formwork and accessories. Workshop area is around 85，000 m². We got varias quality certification, especialy for scaffolding, formwork pannels, formwork accessories, climbing system. For scaffolding, we have two types, one is cuplock scaffolding, the other one is turnbuckle scaffolding. All we have certifications can be offered. We do 100% welding, what we offer is high quality.
Cuplock scaffolding is a new type of scaffolding developed on the basis of absorbing the advanced joints and accessories technology of the same type of scaffolding abroad, combined with the actual situation of our country. The cup-lock type multifunctional scaffolding joint has reasonable structure, simple production process, easy operation and wide range of use, which can fully meet the construction requirements of various buildings such as houses, bridges and culverts, tunnels, chimneys, water towers and so on. Compared with other types of scaffolds, the bowl-button type multi-functional scaffold is a new type of scaffold with broad prospects for development.
ADVANTAGE
1、According to EN 12810 Scaffolding Standard.
2、According to ISO9001 In Raw Material Test, Welding Quality and Safety Load Capacity.
3、Can produce different size as your require.
4、We have a good sales team and professional in export. Can offer best service.
5、We have a professional factory, which has 12 years experience.
6、Can offer Form E, Form F, Co, Etd Certification.
