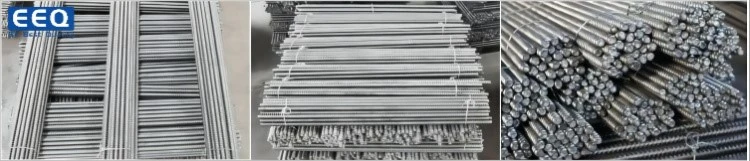

Threaded Rod Bar

Product Introduction



The threaded rod bar are widely used in various projects. We use the material mild steel Q235, providing customers with the size of M12 to M25, with a length of 1 meter to 6 meters.



The mild steel threaded rod bar is used to tie the inner and outer formwork of the wall formwork to withstand the lateral pressure of the concrete and other loads. It ensures that the spacing between the inner and outer formwork can meet the design requirements. It is also the fulcrum of the formwork and its supporting structure. The arrangement of threaded rod bar has a great influence on the integrity, stiffness and hardness of the formwork structure.



The tie rod screw can be repeatedly used, which is a saved material. It would be purchased at one time, in a later period, as long as it meets the requirements of the construction wall, it can be used again.



Product Features

● High Tensile Strength

We use high-quality steel that meets standards, is compressive and tensile resistant, has high hardness, is strong and durable, has good stability, and is not easily damaged.

● Deep Thread

The thread is neat and deep, the stress is uniform and not easy to slip, the workmanship is rigorous, and there are few burrs.

● Support Customization

We produce a variety of tie rod screw outer diameter and length, which can be customized according to customer needs.



Product Specification



Pic	Size	Length	Material	Tensile Strength	Surface Treatment	Package
	M12	1m-6m	Q235	50KN	Self Finished, Galvanized	By Pallet
	M14	1m-6m	Q235	75KN
	M16	1m-6m	Q235	90KN
	M17	1m-6m	Q235	105KN
	M18	1m-6m	Q235	115KN
	M20	1m-6m	Q235	140KN
	M23	1m-6m	Q235	175KN
	M25	1m-6m	Q235	180KN



Related Product



PIC	Product Name	Thread Size	Material	Surface treatment	Package
	Anchor Nut For Tie Rod	M12-M20	Ductile Iron Casting QT450-10	Silver Galvanized, Color Galvanized, Self Color	By Pallet or Wooden Case
	Formwork Wing Nut	M12-M20	Ductile Iron Casting QT450-10
	Hex Couplers	M4-M30	Carbon Steel Q235

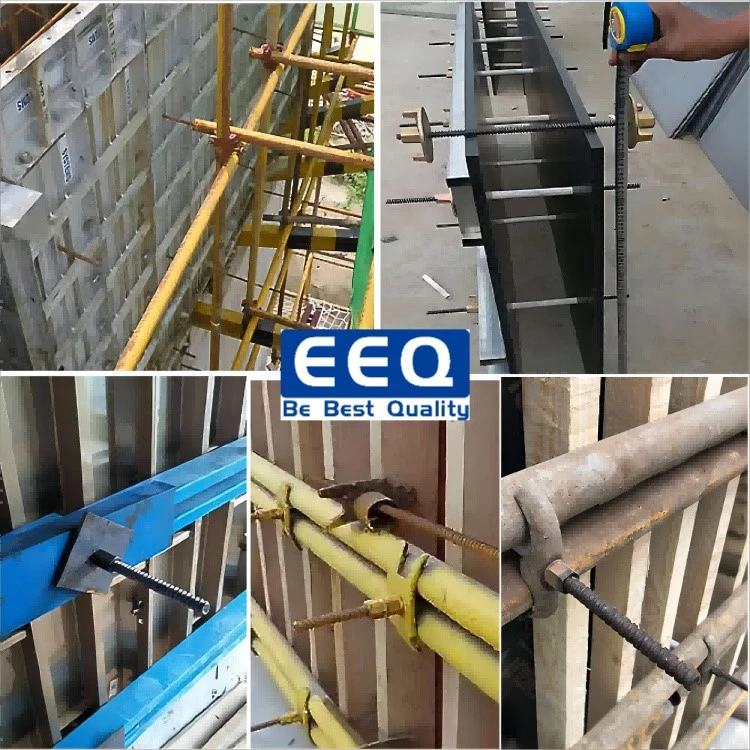

Application

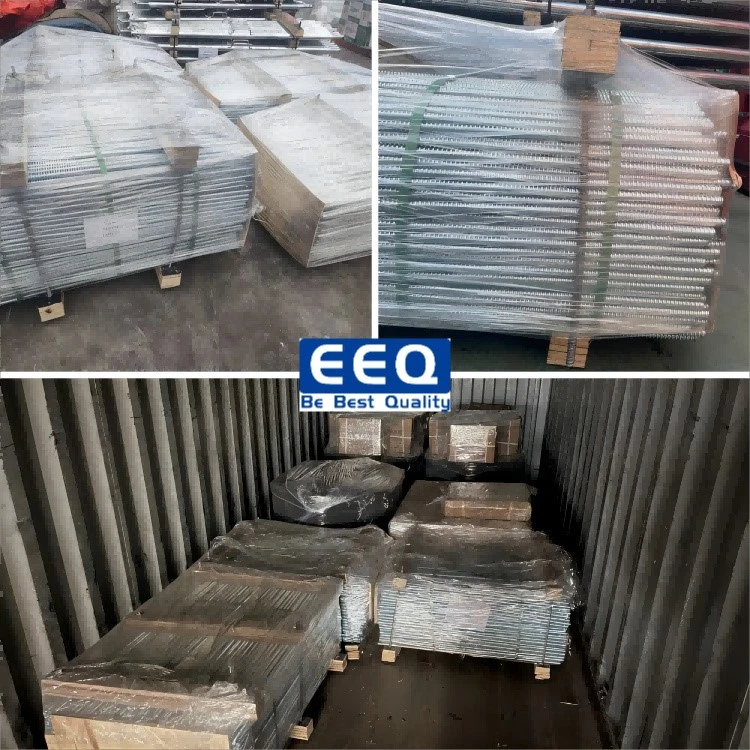

Packing
