Building Material Hot Rolled Tie Rod
Building Material Hot Rolled Tie Rod Φ16，Length: 1m-6m, Material: Q235, Tensile Strength: 90KN, Thread Diameter: 6mm. Surface: Galvanized, Packing: By Bulk.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction

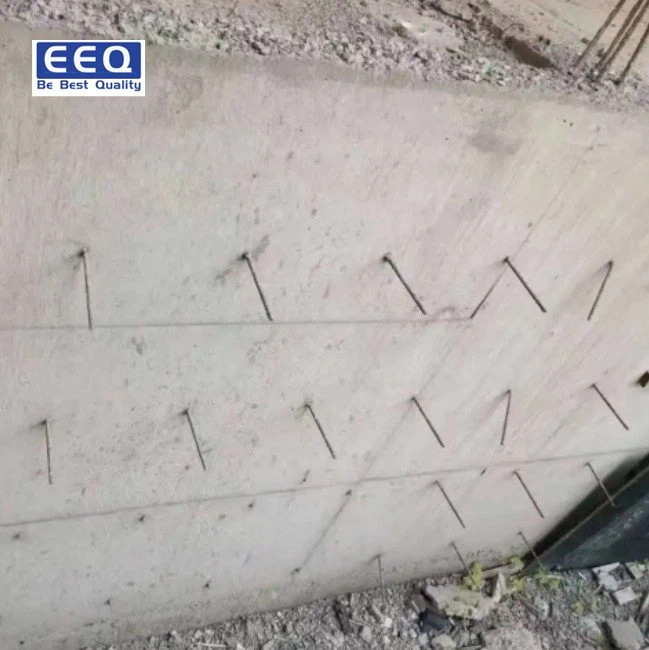

When pouring basement wall or column concrete, in order to fix the formwork and prevent formwork explosion, we need to pass the Building Material Hot Rolled Tie Rod through the wall. This can not only control the wall thickness well but also protect the template. At the same time, because the water is easy to penetrate along the screw, it can also increase the water penetration path by welding the water stop plate, and play a certain role in water stopping. This unique function also makes the environment of civil air defense engineering, basement, and subway station more comfortable. In addition, it can also ensure the safe production of waterworks, sewage plants, and chemical plants.
Features
1. Building Material Hot Rolled Tie Rod can well resist the lateral pressure of concrete and can be used again after being extracted from the wall.
2. The hardness, strength, and toughness of high-quality Q235 steel have been improved after hot rolling treatment.
3. After galvanizing, the oxidation resistance and stability of the product have been improved. Because it is not easy to rust, its service life is also longer.
4. Accessories such as special-shaped clamps and nuts can be reused during construction, and all accessories can be sold separately.
Specification:
PIC | SIZE | Tube Diameter | Length | Thread Diameter | Tensile Strength | Material |
| Rod-12 | Φ12 | 1m-6m | 6mm | 50KN | Q235 |
Rod-14 | Φ14 | 1m-6m | 6mm | 75KN | Q235 | |
Rod-16 | Φ16 | 1m-6m | 6mm | 90KN | Q235 | |
Rod-17 | Φ17 | 1m-6m | 10mm | 105KN | Q235 | |
Rod-18 | Φ18 | 1m-6m | 1/4mm | 115KN | Q235 | |
Rod-20 | Φ20 | 1m-6m | 1/4mm | 140KN | Q235 | |
Rod-23 | Φ23 | 1m-6m | 1/4mm | 175KN | Q235 | |
Rod-25 | Φ25 | 1m-6m | 1/4mm | 180KN | Q235 |
Applicant:
Packing:
Products Certification:
Production Process
1, Rolling wire: High-precision thread rolling,hot rolled, more strong
2,Cut Off: Ensure the specifications of each Building Material Hot Rolled Tie Rod
3,Polish: Polished the end of the tie rod, make more nice finishing

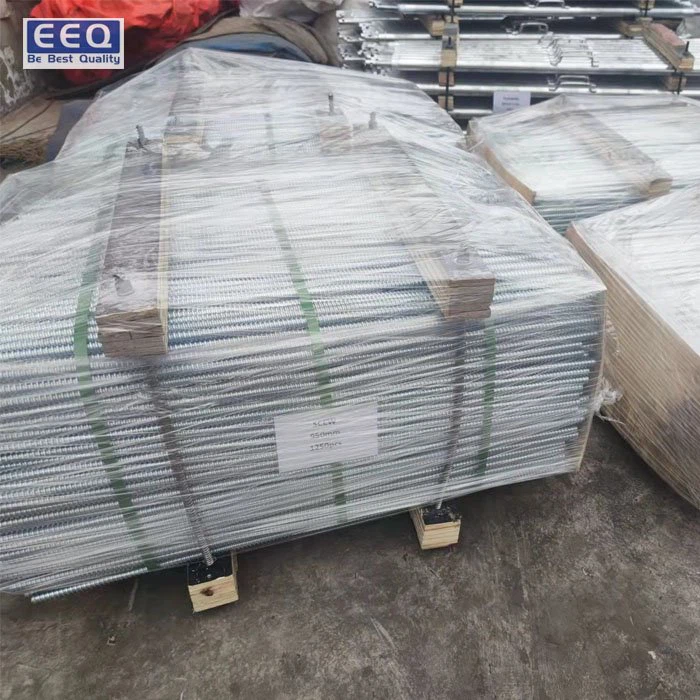

4,Packing:Wrap with Plastic nylon, and pack with bundle, the best way for transportation.
We can provide tie rod, also form tie system:
Form Tie B type
Form Tie BC type
Form Tie C type
Form Tie D type.
