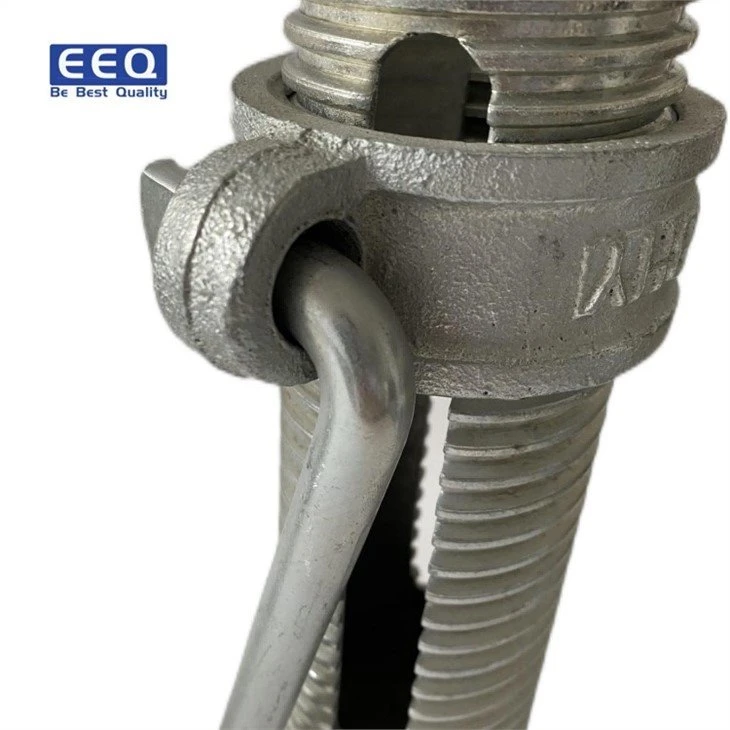

Construction Steel Prop Sleeve Nut
Construction Steel Prop Sleeve Nut Prop Sleeve is made of Q235 steel. The product material has passed the testing and certification of GB/T 19001-2016 / ISO 9001:2015, GB/T 50430-2017. The product has high durability, strong support strength, high thread accuracy, and without glitch.
Steel Prop Sleeve has various sizes. Typical lengths range from 195mm to 350mm and thicknesses range from 2.5mm to 4.0mm.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.
Introduction
Steel support refers to the members that use steel pipes, H-shaped steel, angle steel, etc. to enhance the stability of the engineering structure. Steel bracing is widely used in subway and foundation pit support. Construction Steel Prop Sleeve Nut is a steel nut used for important connections in rigid steel supports. It is made of Q235 steel, so the material is solid and the bearing capacity is strong. The product materials have passed the testing and certification of GB/T 19001-2016/ISO 9001:2015 and GB/T 50430-2017. Because it has the advantages of high durability, strong support strength, high accuracy, and no burr, it is widely welcomed.
Features
1. Construction Steel Prop Sleeve Nut is available in various sizes. The typical length range is 195mm to 350mm, and the thickness range is 2.5mm to 4.0mm.
2. The product has undergone precise wire rolling and we have carried out the most strict error control on the product, so the precision is high.
3. After galvanizing treatment, the surface of the product is more wear-resistant and not easy to rust.
4. Its installation is very convenient, and it is a very efficient and strong connector.
Product Specification:
PIC | ITEM | SIZE | WEIGHT KG | MATERIAL | SURFACE |
| Prop Sleeve | 60*210*1.8mm | Q235 | Normal,Galvinized | |
60*220*2.5mm | |||||
60*230*3.0mm | |||||
| Prop Cup Nut | 0.40KG | QT400 QT450 | Normal,Galvinized | |
0.63KG | |||||
0.25KG | |||||
| Hook | D12*L200-400mm | Q235 | Normal,Galvinized | |
D14*L200-400mm | |||||
D16*L200-400mm | |||||
| Prop Explosion Proof Gasket | Thickness 57*3 | Q235 | Normal,Galvinized | |
| Pin And Washers | Pin: D10mm, 12mm, 14mm | Q235 | Normal,Galvinized |
Applicant:

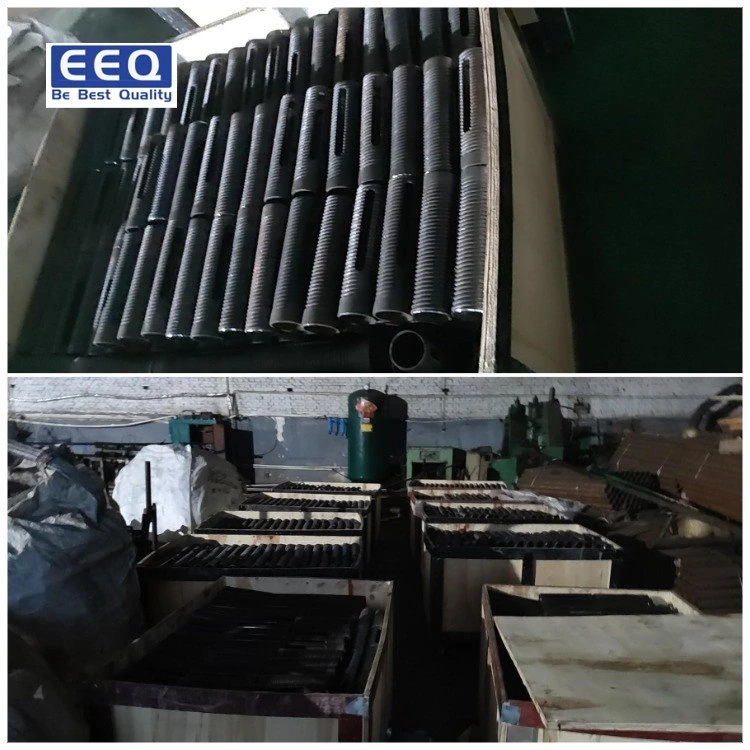

Packing:
Products Certification:
Mill Certification | |||||
Product | Adjustable Props | Size | 1700*3-2000*3 | Quantity | 5000 |
Material | Q235 | Source Of Material | Handan Iron & Steel Group Co., Ltd. | ||
Tensile Strength ó bN/m㎡ | 485 | Standard | GB/T228.1-2010 | Issued Date | 2022.01.20 |
Mechanical Proverty | |||||
Loading capacity /T | Yield Strength ó 0.2N/m㎡ | Stress SpN/m㎡ | Elongation ó 5% | Impact Rate AKJ | Hardness H RC |
2.5 | 235 | 2.5 | 26 | 220 | |
C | S | P | Si | Mn | Cr |
0.16 | 0.05 | 0.045 | 0.3 | 0.45 | |
| |||||
Remark: | |||||
We hereby certify that product described herein has been made in Accordance with standards and specification specified by you that satisfise the requirement. | |||||
Advantages
Steel props is easy to assemble and dismantle, it can be adjusted to any length within its range, it is popular used in house building and high-rise construction. EEQ formwork provide heavy duty adjustable steel props, all our props have passed the compression tests to make sure they meet our loading requirements.
EEQ formwork accept ODM service, we can produce Construction Steel Prop Sleeve Nut according to your drawing and quality standard, we can do galvanized finishing or red/blue painting, or plastic spray finishing, welcome to contact us to order the most suitable steel props for your project.
